SANIDRY Horizontal Sanitary Vacuum Dryer (SHV)
Efficient drying of sensitive products
Gently dries crystalline, paste-like and powder products under deep vacuum – ideal for heat-sensitive materials.
Horizontal paddle agitator with high heat transfer
Heated paddles and shaft ensure continuous product renewal against the heated walls, resulting in faster drying times.
Sanitary design and easy inspection
cGMP- and FDA-compliant design with mirror or electro-polished surfaces, large front door for inspection, and options for CIP/SIP cleaning.
Cleanroom installation for optimal hygiene
Can be wall-mounted for cleanroom use – the vacuum drum is placed inside the cleanroom, while technical components such as the motor remain outside.
How the SANIDRY Vacuum Dryer Works

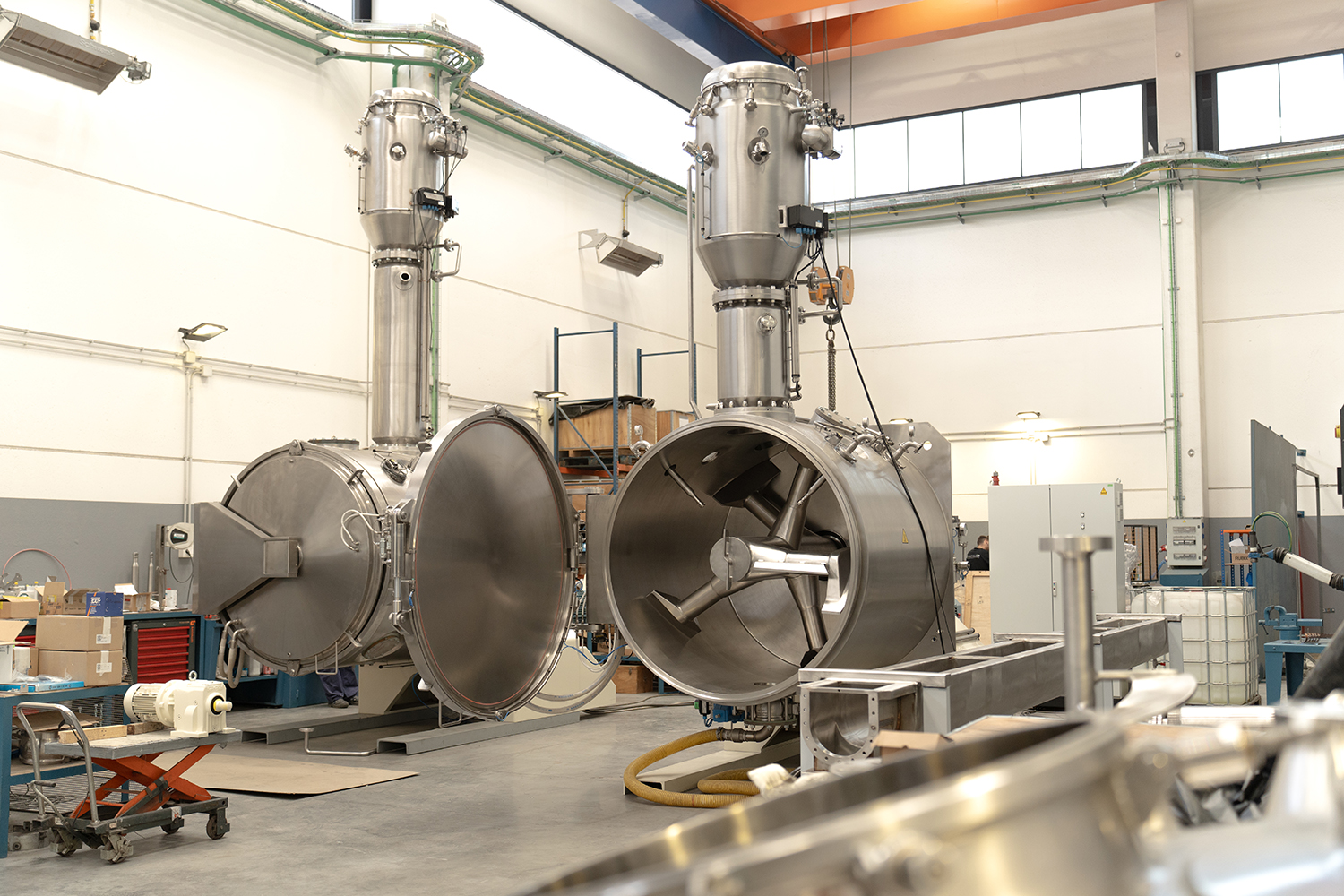

The SANIDRY (SHV) is a horizontal vacuum dryer with a sanitary design, specially developed for batch drying of crystalline, amorphous, paste-like or moist products requiring gentle treatment. The entire interior – including paddles, shaft and vessel – is heated to maximize heat transfer and reduce drying time.

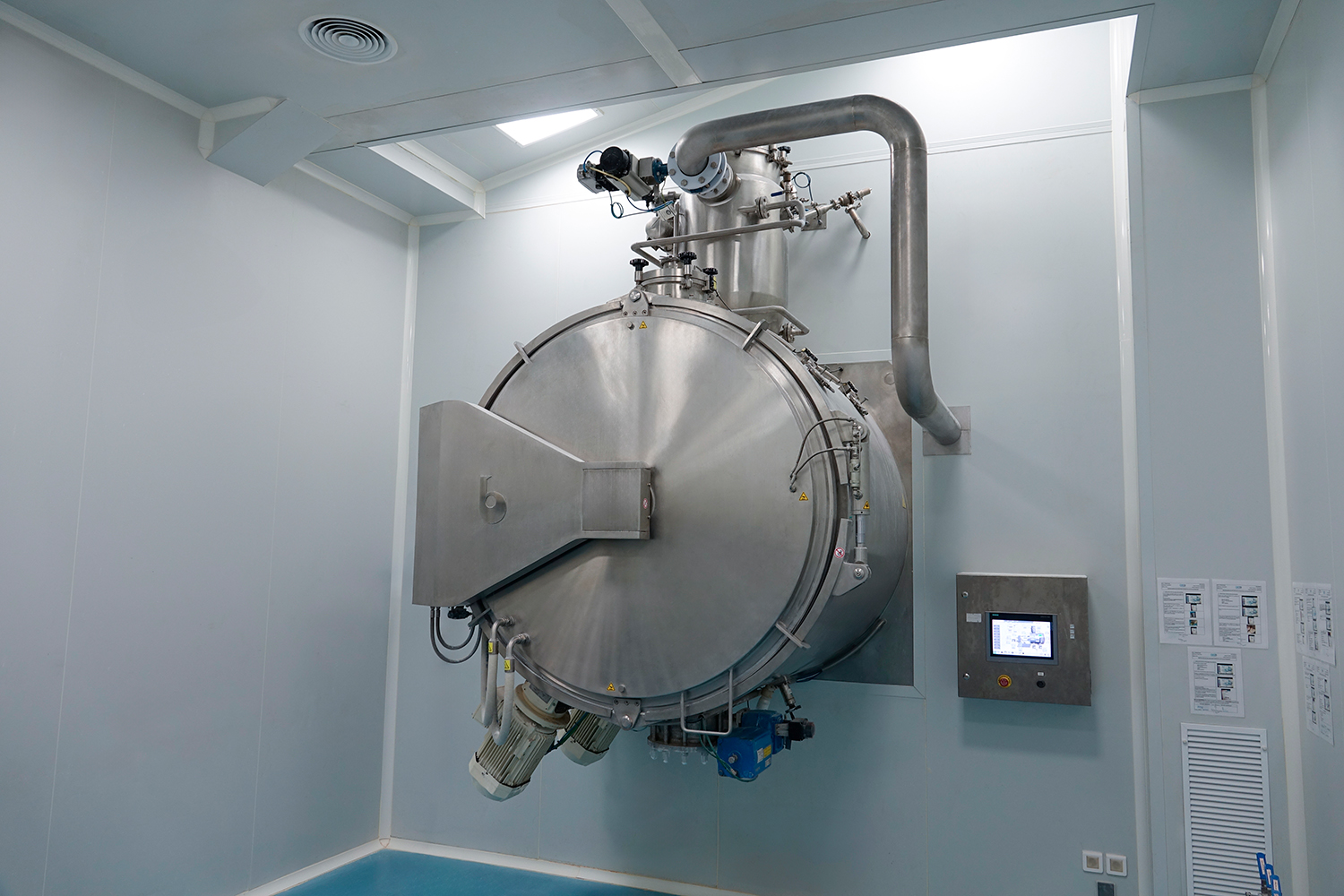

The SANIDRY is ideal for pharmaceutical and sanitary production, as it can be wall-mounted for cleanroom installation. This allows the vacuum drum to remain inside the cleanroom, while technical components such as the motor and drive system are located outside – simplifying cleaning and reducing the risk of contamination.

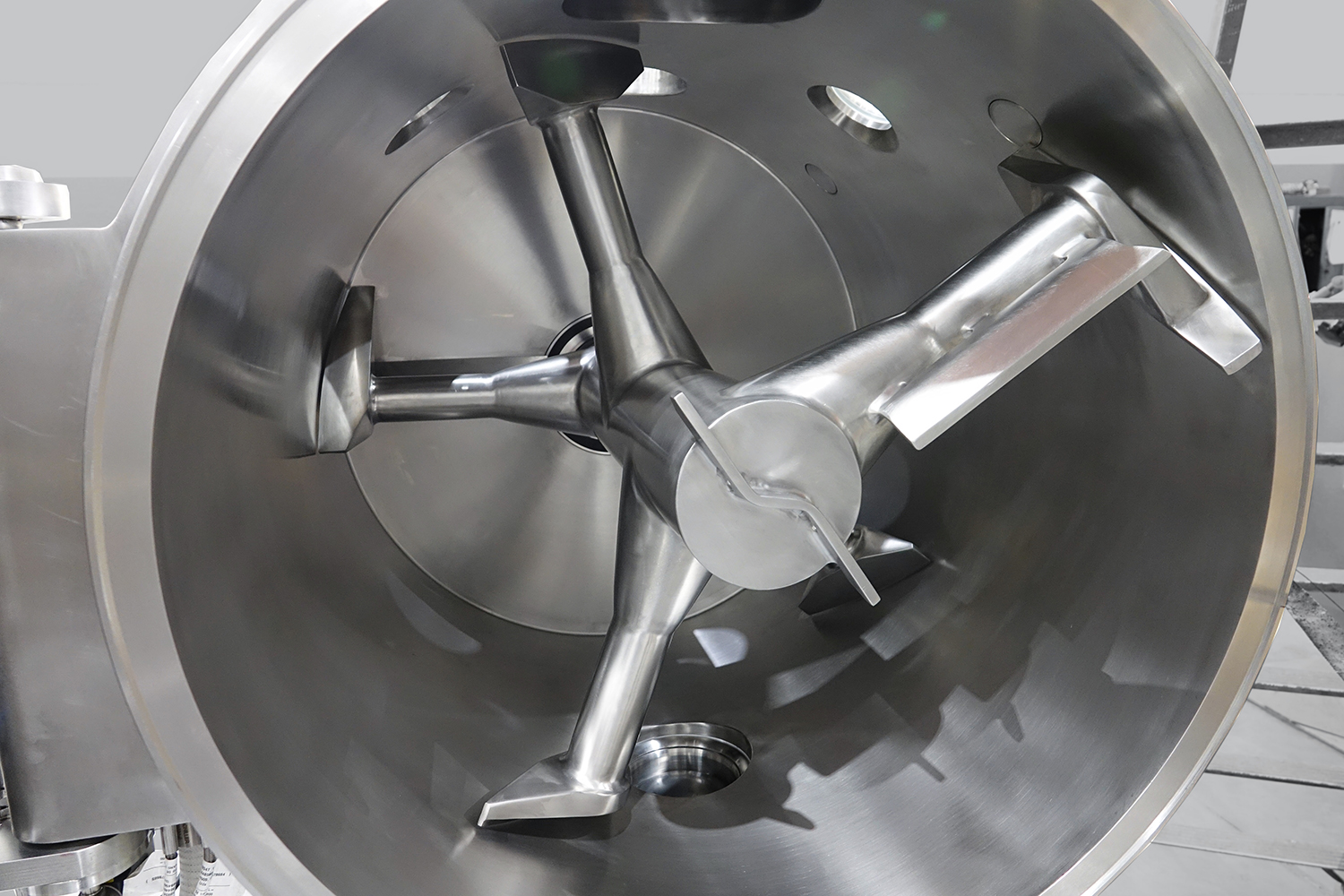

The tight tolerances between the paddles and vessel wall ensure continuous product renewal against the heating surface, providing excellent thermal efficiency and consistent drying results. The large front door allows easy inspection and cleaning, and fully CIP/SIP-compatible versions are available for sterile applications.
The SANIDRY can be equipped with optional features such as choppers, sampling valve, automatic front door, heated shaft, ATEX 20/0 certification and cleanroom-to-technical area separation systems.
Technical specifications
- Capacities from 50 to 10,000 litres
- Batch operation under vacuum < 1 mbar
- Operating temperature up to 200 °C
- Can be polished to Ra ≤ 0.2 µm
- Design standards: ASME VIII div.1, AD-2000, EN-13445
- cGMP- and FDA-compliant design
Typical industries
- Pharmaceutical and biotechnology
- Fine and specialty chemicals
- Food production
See more about SANIDRY filter dryers here
See more about our other vacuum dryers here
Interested in granulation and powder functionalisation? Read more here
Bachiller
Bachiller is a Spanish manufacturer of advanced vacuum dryers and Nutsche filter dryers for the pharmaceutical, chemical and food industries. With more than 50 years of experience, Bachiller develops process solutions for the gentle and efficient handling of heat-sensitive materials, meeting the highest standards of hygiene, safety and documentation.
The company is ISO 14001 certified and is committed to reducing both its own and its customers’ CO₂ footprint through energy-efficient and environmentally optimised process solutions. This environmental focus is reflected throughout their product development — from optimised heating surfaces to reduced energy consumption and resource-efficient manufacturing.
Bachiller designs and manufactures all key components in-house and supplies equipment according to leading international standards, including ISO 9001, ISO 3834-2, ASME U/U2, PED Module H & H1 and AD-2000 HP0. Their strong focus on quality, traceability and innovation has made Bachiller one of the most recognised manufacturers of vacuum dryers and filter dryers worldwide.
Get in touch with us to find the ideal SANIDRY horizontal sanitary vacuum dryer tailored to your specific needs for vacuum drying, hygiene and cleanroom installation
