TURBODRY Horizontal Vacuum Dryer and Reactor (MHT-RS)
Heavy-duty design for high-viscosity products
Developed for processes where materials have high viscosity and require powerful agitation during both drying and reaction phases.

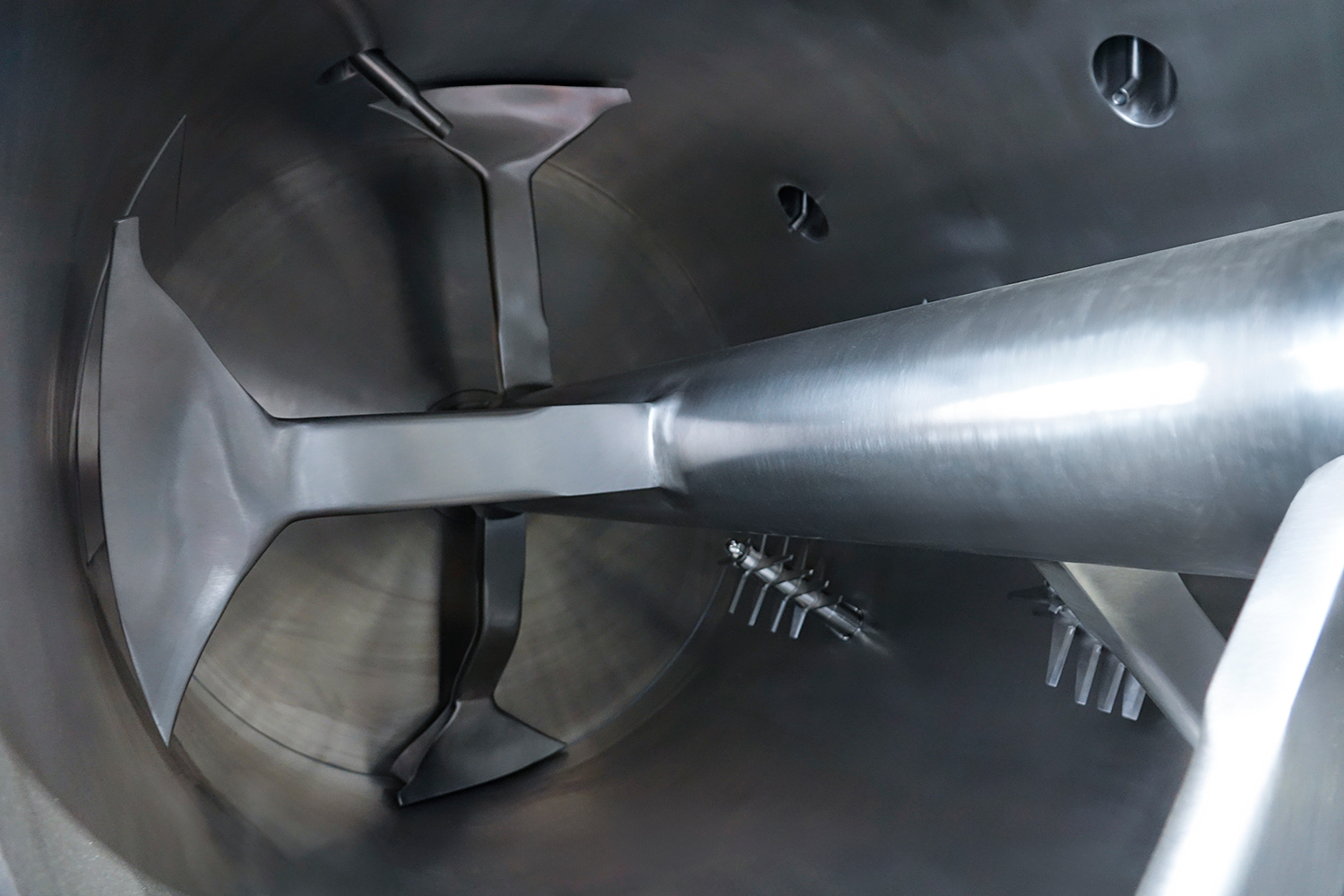

High-speed paddle agitator
The heated shaft and paddles rotate close to the vessel wall to ensure maximum heat transfer and create intense turbulence.
Shorter drying times with high thermal efficiency
Efficient heat exchange reduces drying time and guarantees uniform batch results.
Flexible and scalable solution

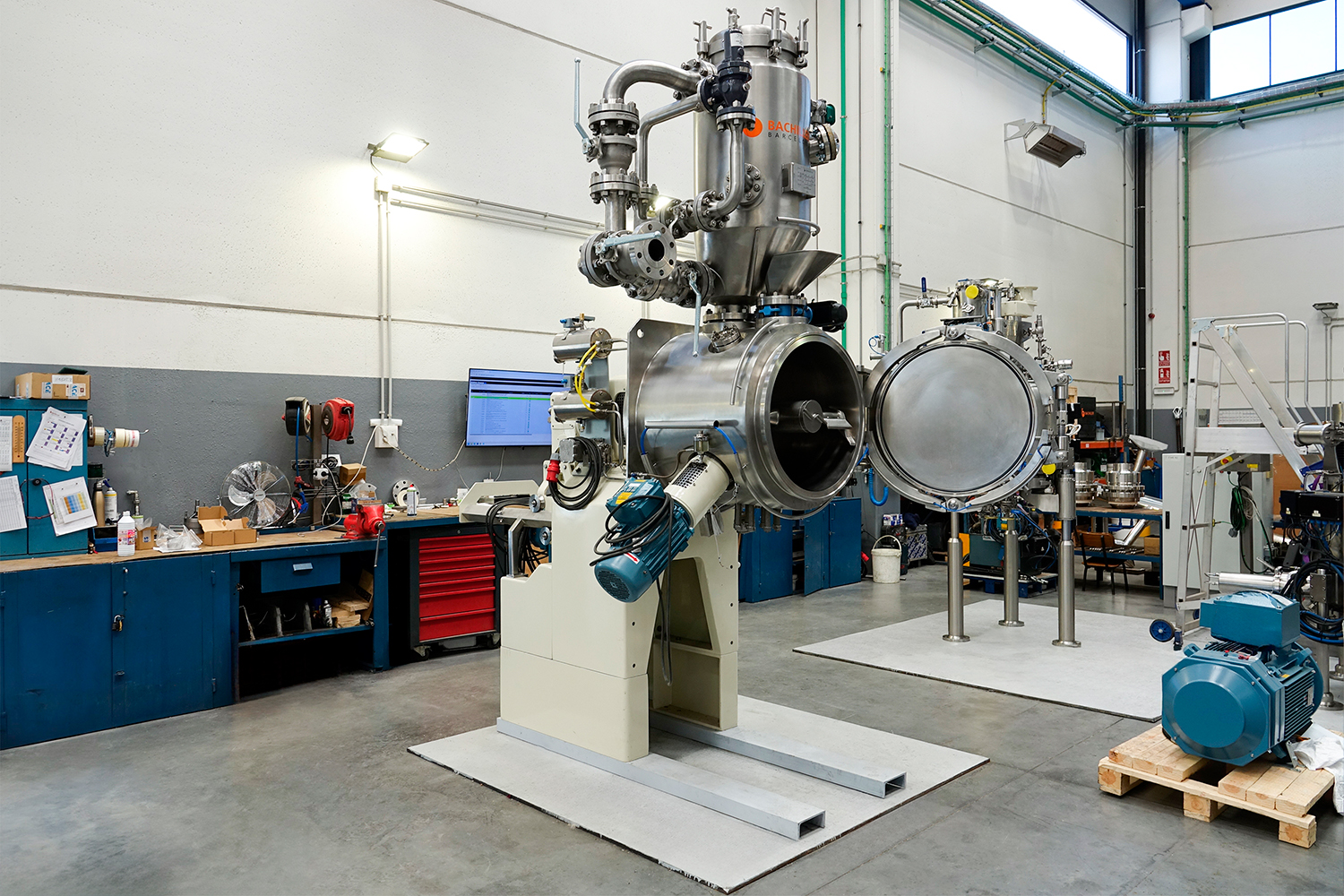

Available in sanitary and ATEX-certified designs, and in capacities ranging from pilot-scale to full-scale production.
How the TURBODRY Vacuum Dryer and Reactor Works

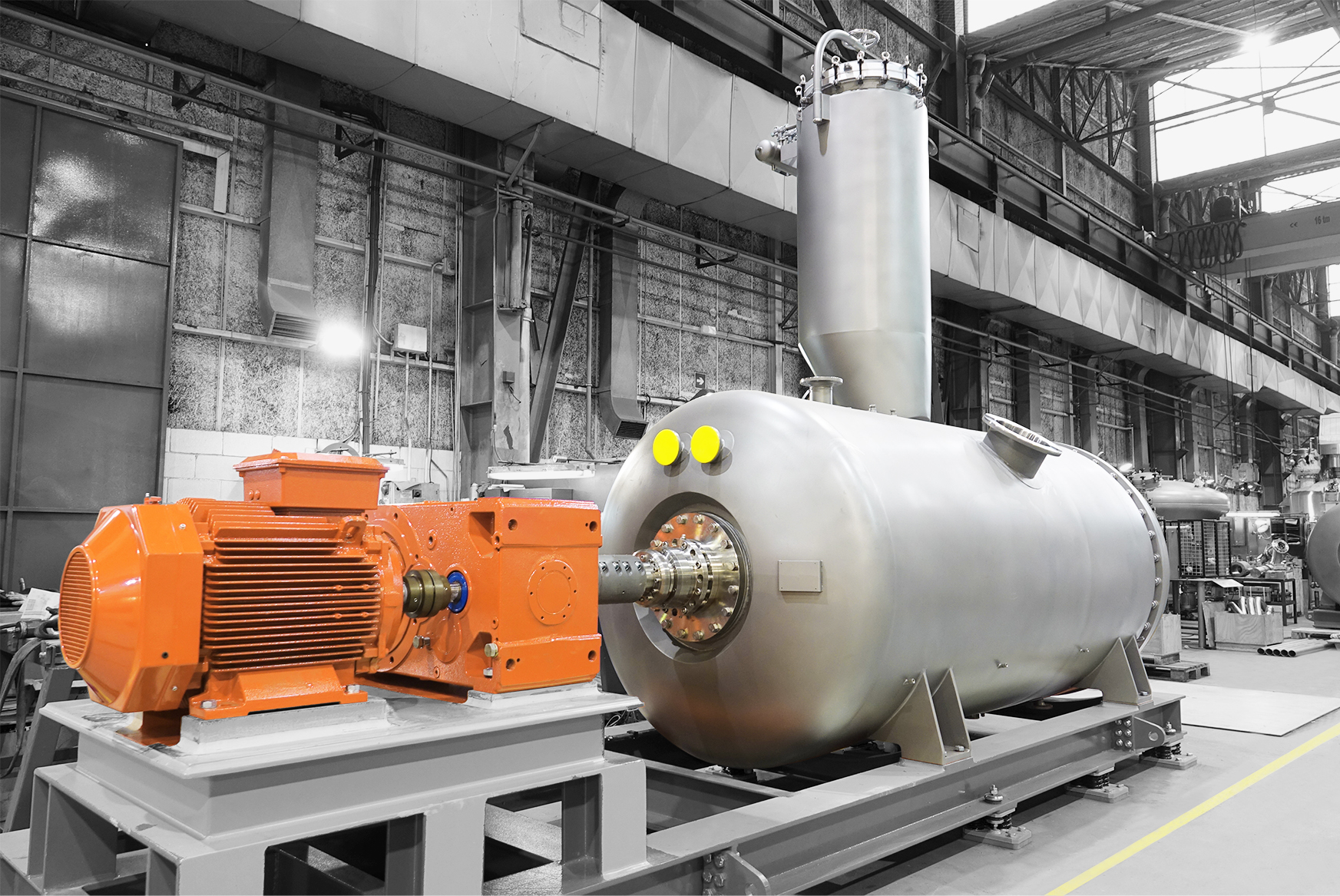

The TURBODRY (MHT-RS) is a horizontal vacuum paddle dryer and reactor designed for handling materials with pseudo-plastic behaviour during reaction and drying. The robust design is ideal for processes where the product must withstand high torque and intense turbulence.
With a fully heated vessel, shaft and paddles, the system achieves maximum thermal efficiency. The high-speed paddles rotate close to the vessel wall, creating continuous product renewal against the heated surfaces and ensuring rapid, uniform drying.
The machine can be supplied in a sanitary design according to cGMP standards, with mirror or electro-polished surfaces. Optional features include choppers, sampling valve, ATEX 20/0 certification, condensation and vacuum systems, and a hydraulically driven main motor.
Technical specifications
- Capacities from 10 to 30,000 litres
- Batch operation under vacuum < 1 mbar
- Operating pressure up to 6 bar(g)
- Operating temperature up to 350 °C
- Design standards: ASME VIII div.1, AD-2000, EN-13445
- Optional cGMP- and FDA-compliant execution
Typical industries
- Pharmaceutical and biotechnology
- Fine and specialty chemicals
- Food production
See more about TURBODRY vacuum dryers here
See more about our other vacuum dryers here
Interested in granulation and powder functionalisation? Read more here
Bachiller
Bachiller is a Spanish manufacturer of advanced vacuum dryers and Nutsche filter dryers for the pharmaceutical, chemical and food industries. With more than 50 years of experience, Bachiller develops process solutions for the gentle and efficient handling of heat-sensitive materials, meeting the highest standards of hygiene, safety and documentation.
The company is ISO 14001 certified and is committed to reducing both its own and its customers’ CO₂ footprint through energy-efficient and environmentally optimised process solutions. This environmental focus is reflected throughout their product development — from optimised heating surfaces to reduced energy consumption and resource-efficient manufacturing.
Bachiller designs and manufactures all key components in-house and supplies equipment according to leading international standards, including ISO 9001, ISO 3834-2, ASME U/U2, PED Module H & H1 and AD-2000 HP0. Their strong focus on quality, traceability and innovation has made Bachiller one of the most recognised manufacturers of vacuum dryers and filter dryers worldwide.
Contact us for advice on choosing the TURBODRY horizontal vacuum dryer and reactor that best fits your requirements for drying, reaction and handling of high-viscosity products
